Automated Optical Inspection (AOI) for High-Reliability PCB Assemblies
Automated optical inspection (AOI) is a critical quality control process in modern electronics manufacturing. At VR Industries, AOI is integrated at multiple stages of our production process, providing consistent, repeatable verification that every printed circuit board assembly meets the exacting standards our customers depend on. This is especially important in medical, defense, and industrial applications.
What Is Automated Optical Inspection?
Automated optical inspection uses high-resolution camera systems and advanced imaging software to scan PCB assemblies and compare them against a verified reference. The system rapidly identifies deviations in component placement, solder joint quality, polarity, and more all at a speed and accuracy that far exceeds manual visual inspection. For contract manufacturers producing complex or high-mix assemblies, AOI testing is an essential line of defense against costly defects reaching the field.
Ask an Expert
Have questions about our AOI process? Connect with a VR Industries manufacturing expert to discuss how our automated optical inspection capabilities support your quality requirements.
How VR Industries Uses AOI
Our automated optical inspection systems are deployed at key points throughout the surface mount technology (SMT) assembly process. This includes post-paste inspection to verify solder paste deposits, post-placement inspection to confirm accurate component positioning, and post-reflow inspection to evaluate solder joint quality. By running AOI at these multiple checkpoints, we intercept potential issues early before they compound into more costly problems downstream.

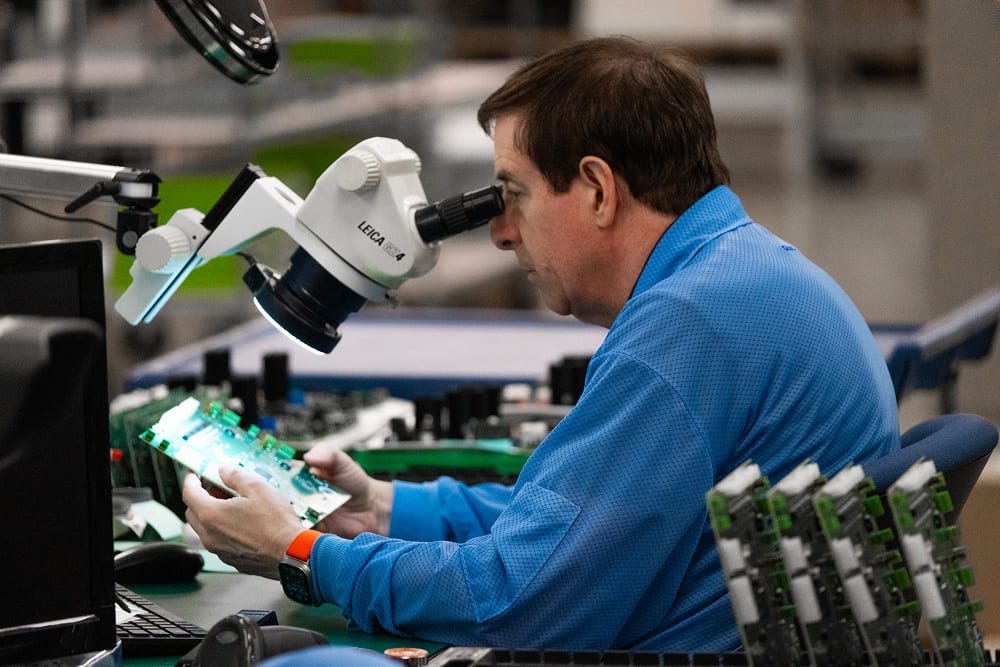

Our IPC-A-610-certified operators work alongside our AOI systems to review flagged results and make informed decisions. This combination of automated detection and expert human oversight is central to our Zero Defect quality philosophy.
Key elements of our AOI process include:
- Correct placement verification for all SMT components
- Automated solder joint inspection for consistent quality outcomes
- Electrical verification of component placements performed on all SMT placement machines
- Seamless integration with our in-house x-ray inspection capabilities for comprehensive defect detection
AOI as Part of a Comprehensive Quality System
Automated optical inspection PCB processes do not stand alone. At VR Industries, AOI is one component of a multi-layered quality system designed to deliver reliable results across every production run. Our quality infrastructure also includes high-resolution x-ray inspection for BGA reflow verification and 3D rendering, functional testing, burn-in services, and incoming counterfeit component verification.
This integrated approach supports the traceability and documentation requirements of our ISO 9001 and ISO 13485 certified quality management systems, as well as the J-STD-001 and IPC-A-610 standards that govern our assembly processes. For defense customers, our ITAR-registered manufacturing environment adds an additional layer of control and security throughout the production cycle.
Whether your product requires high-volume surface mount assembly or a low-volume, high-complexity build, our automated optical inspection systems provide the consistent oversight necessary to ensure quality at every stage.
- Incoming and in-process inspection designed to catch defects before they escalate
- Final inspection processes validated against IPC-A-610 acceptance criteria
- Complete documentation and traceability supporting audit-ready quality records
Building Confidence Through Process
Our commitment to automated optical inspection reflects VR Industries’ broader approach to manufacturing: that quality is built into the process, not tested at the end. By investing in advanced AOI systems and maintaining a highly trained, certified workforce, we give our customers the confidence that their assemblies will perform reliably in the field: the first time, and every time.
To learn more about how our PCB inspection and broader quality capabilities can support your manufacturing program, reach out to our team directly.
